M5Stack UnitV2 - The standalone AI Camera for Edge Computing (SSD202D) TinyML
Description

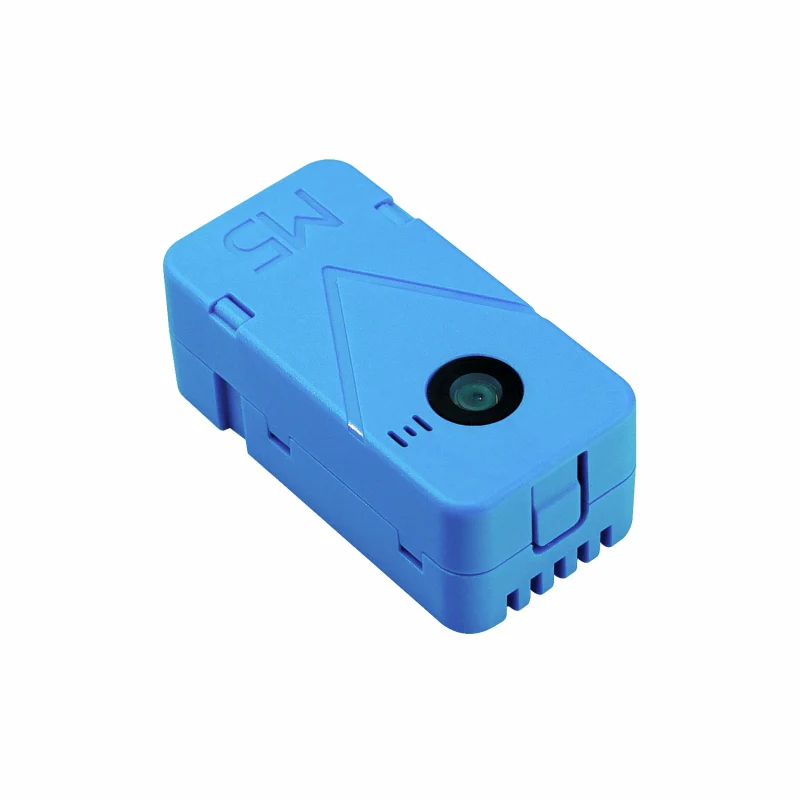

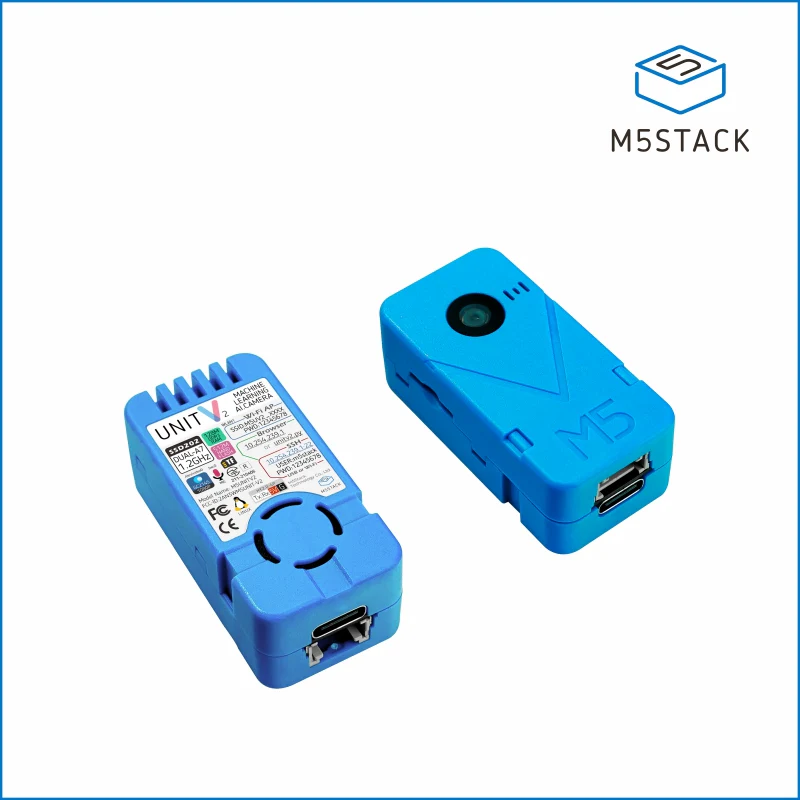

UnitV2 is a high-efficiency AI recognition module launched by M5Stack, featuring the SigmaStar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) as the control core, integrated with 128MB DDR3 memory, 512MB NAND Flash, and a 1080P camera. It comes with an embedded Linux operating system, rich software and hardware resources, and development tools, aiming to provide users with a plug-and-play, simple, and efficient AI development experience.
It is recommended to use Edge and Chrome browsers, as Firefox may cause freezing or unstable video playback.
Features
- SigmaStar SSD202D
- Dual-core Cortex-A7 1.2GHz processor
- 128MB DDR3
- 512MB NAND Flash
- GC2145 1080P Colored Sensor
- Built-in microphone
- Wi-Fi 2.4GHz
Includes
- 1 x UnitV2
- 1 x 32GB microSD card
- 1 x USB Type-C cable (50cm)
- 1 x Stand
- 1 x Back clip
Applications
- AI recognition function development
- Industrial visual recognition and classification
- Machine vision learning
Specifications
| Specification | Parameters |
|---|---|
| SigmaStar SSD202D | Dual Cortex-A7 1.2GHz Processor |
| Flash | 512MB NAND |
| RAM | 128MB-DDR3 |
| Camera | GC2145 1080P Colored Sensor |
| Lens | FOV 68°, DOF= 60cm- ∞ |
| Input Voltage | 5V @ 500mA |
| Hardware Peripherals | Type-C x1, UART x1, TFCard x1, Button x1, Microphone x1, Fan x1 |
| Indicators | Red, White |
| Wi-Fi | 150Mbps 2.4GHz 802.11 b/g/n |
| Operating Temperature | 0 ~ 60°C |
| Shell Material | Plastic (PC) |
| Product Size | 48.0 x 18.5 x 24.0mm |
| Product Weight | 18.0g |
| Package Size | 157.0 x 38.0 x 38.0mm |
| Gross Weight | 62.0g |
Product Comparison
| Specification | UnitV2 | UnitV2-M12 | UnitV2-USB |
|---|---|---|---|
| Lens Configuration | Standard focal length (FOV 68°) | Standard focal length (FOV 85°) + Wide-angle focal length (FOV 150°) | No lens, USB-A universal interface, supports connection to various UVC cameras |
| CMOS | GC2145 | GC2053 | / |
