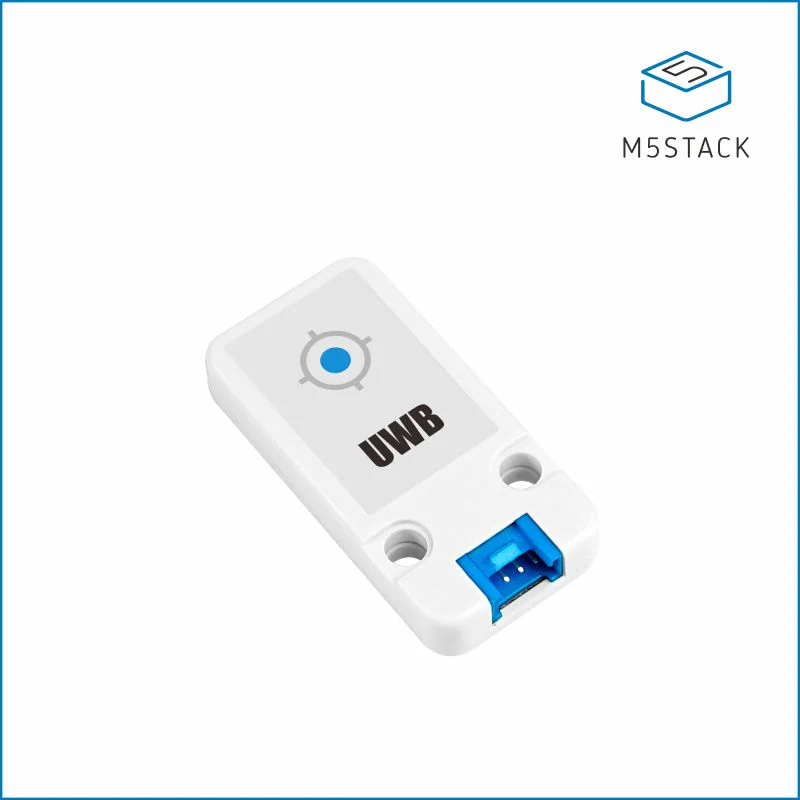

Ultra-Wideband (UWB) Unit Indoor Positioning module (DW1000)
Description
Unit UWB is a wireless communication unit equipped with indoor positioning technology. The design adopts the Ai-Thinker BU01 module solution (an ultra-wideband (UWB) transceiver module based on Decawave's DW1000). It features a built-in STM32 and integrated ranging algorithm, achieving a positioning accuracy of up to 10 cm, and supports AT command control. When applied to indoor wireless ranging, it operates in base station and tag modes (the base station calculates and outputs position information to the tag).
Features
- Positioning accuracy: 10 cm
- Built-in STM32 with integrated ranging algorithm
- AT command control
- Serial communication (baud rate: 115200)
- Easy integration, no RF design required
- Complies with IEEE 802.15.4-2011 UWB standard
- Supports two-way ranging and TDOA
- Development platforms: Arduino, UIFlow (Blockly, Python)
- 2 x LEGO-compatible holes
Includes
- 1 x Unit UWB
- 1 x HY2.0-4P Grove cable (20 cm)
Applications
- Indoor positioning/wireless ranging
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F103C8T6 |
| Data transfer rate | 110 kbit/s, 850 kbit/s, and 6.8 Mbit/s |
| Frequency band | 6 bands: from 3.5 GHz to 6.5 GHz |
| Transmit power | -14 dBm/-10 dBm |
| Transmit power density | <-41.3 dBm / MHz |
| Supported packet size | 1023 bytes |
| Modulation method | BPM (Binary Phase Modulation) and BPSK (Binary Phase Shift Keying) |
| FDMA | 6 channels |
| Product Size | 48.0 x 24.0 x 8.0mm |
| Product Weight | 8.2g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 13.5g |
