Time-of-Flight Distance Ranging Sensor Unit (VL53L0X)
Description

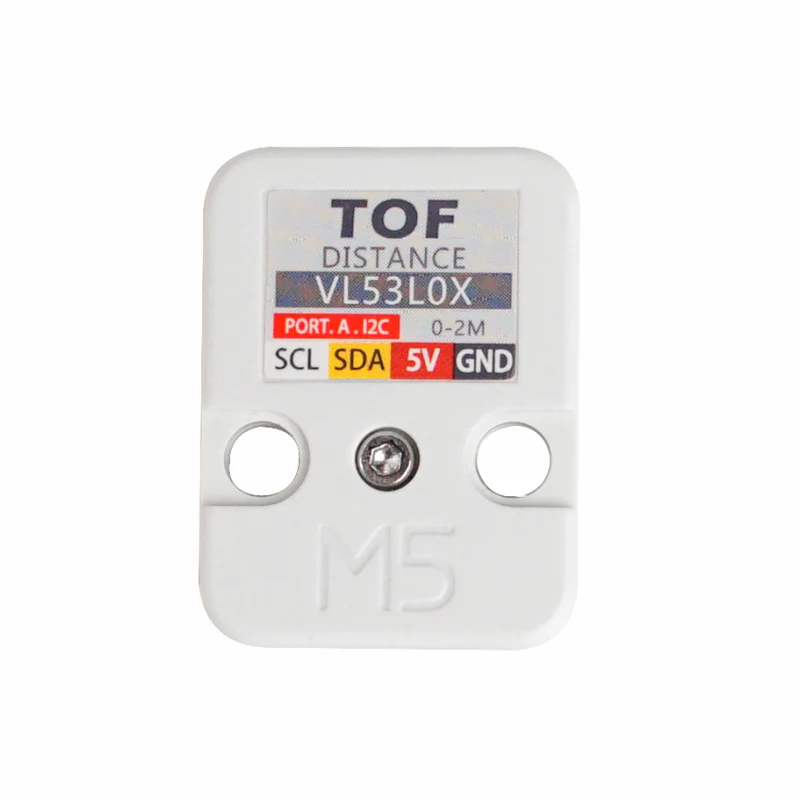

Unit ToF is a laser-ranging Unit. It integrates the VL53L0X laser-ranging module, which calculates the distance between the emission point and the object detected by measuring the round-trip time of the laser signal. Unlike traditional ranging, it can provide accurate distance measurement data regardless of the reflectivity of the target. Emitting laser light with a wavelength of 940nm, it can measure an absolute distance of up to 2m in less than 30ms.
Features
- Maximum measurement distance: 2 meters
- Measurement accuracy: ±3%
- Laser wavelength: 940nm
- 2 x LEGO compatible holes
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE

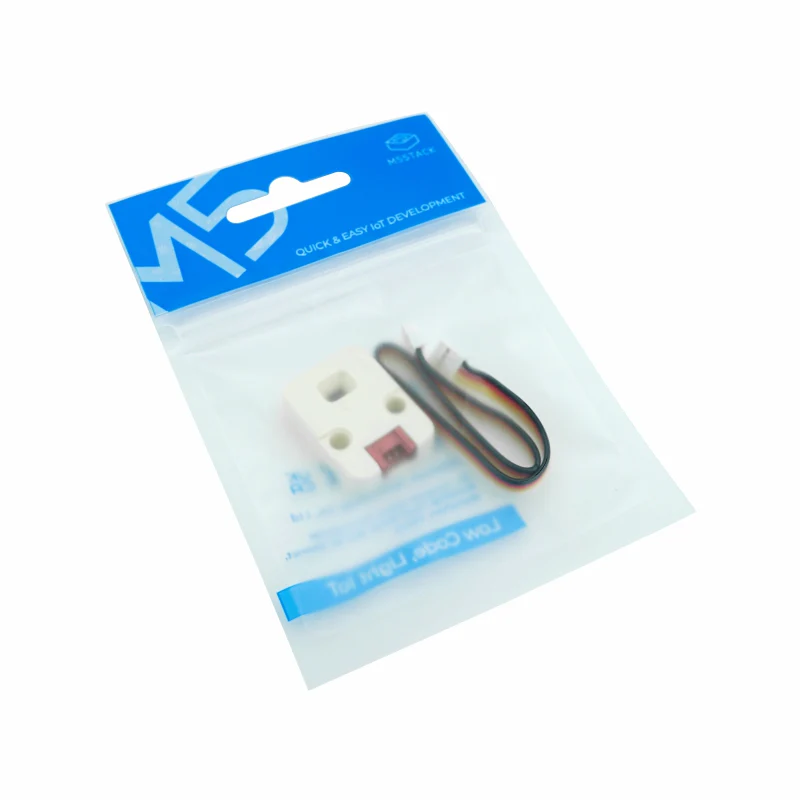

Includes
- 1 x Unit ToF
- 1 x HY2.0-4P Grove Cable (20cm)
Applications
- Laser ranging
- 3D structured light imaging (3D sensing)
- Camera assistance (ultra-fast autofocus and depth mapping)
Specifications
| Specification | Parameter |
|---|---|
| Sensor | VL53L0X |
| Protocol | I2C @0x29 |
| Measurement Range | 3cm ~ 200cm |
| Measurement Accuracy | ±3% |

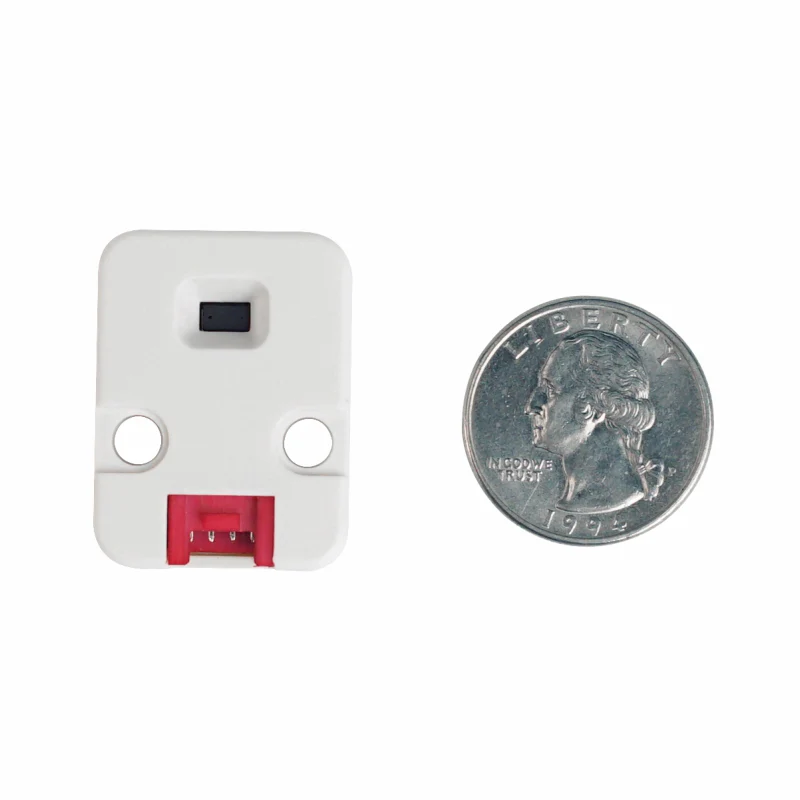

| Product Size | 32.0 x 24.0 x 8.0mm |
| Product Weight | 4.1g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 9.4g |
Product Comparison
| Product Compare | Unit-ToF4M | Unit-TOF |
|---|---|---|
| Chip | VL53L1X | VL53L0X |
| Maximum Range | 4 meters | 2 meters |
| Typical Accuracy | ±1-2% | ±3% |
| Field of View (FoV) | 27° (adjustable) | 25° |
| Adjustable Field of View | YES | NO |
