Description

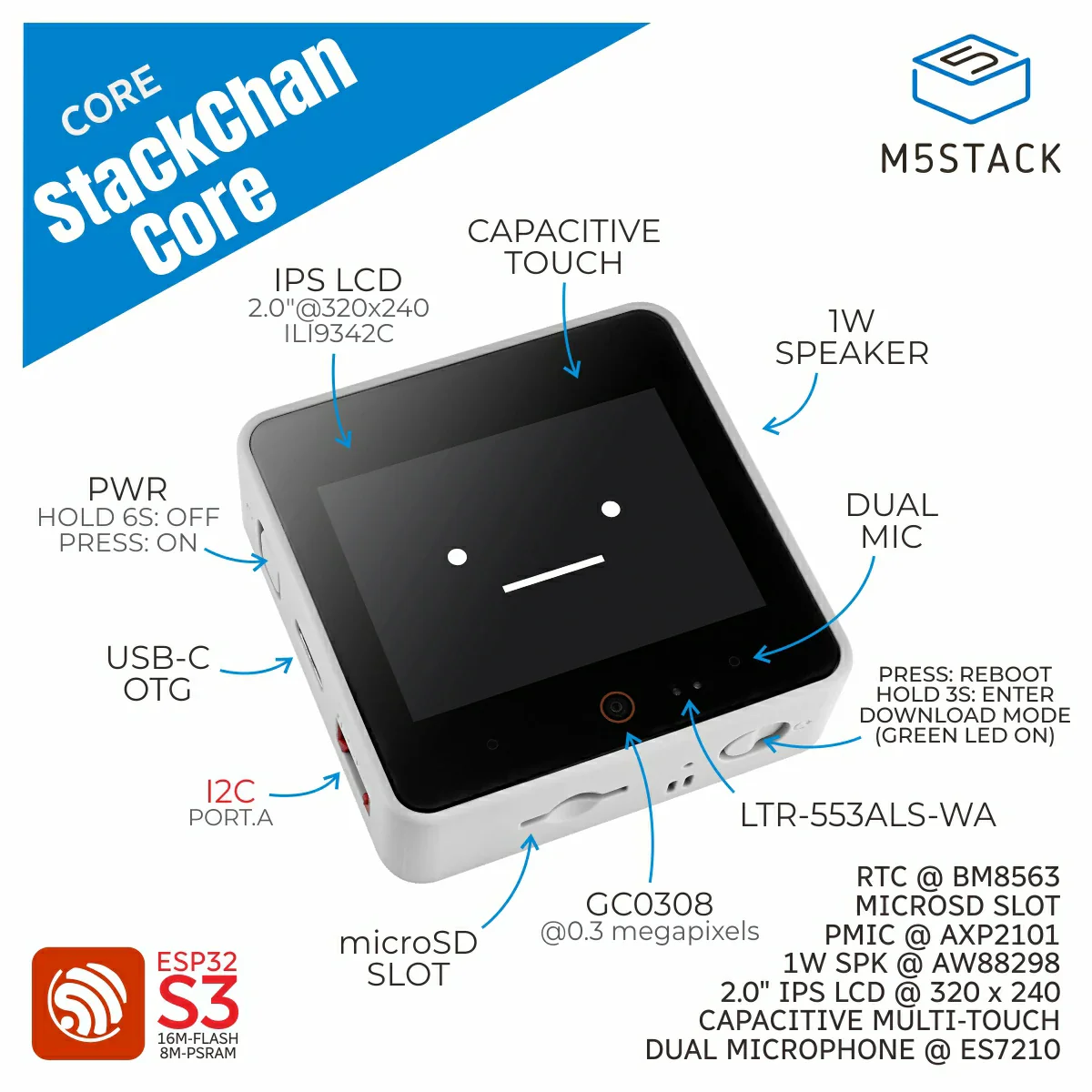

StackChan Core is the main controller for the StackChan robot and is intended for mainboard replacement. It uses an ESP32-S3 controller with a 240 MHz dual-core processor, built-in 16MB Flash and 8MB PSRAM, and native Wi-Fi + BLE wireless communication. The board integrates many built-in peripherals: a rugged 2.0-inch capacitive touch screen, a 0.3 MP camera, proximity sensor, ambient light sensor, and nine-axis IMU; it also provides a microSD card slot, an onboard 1W speaker, dual microphones, power and reset buttons, and is suitable as a direct replacement for the original controller in StackChan AI desktop robots.

Features

• Main controller replacement for StackChan
• Based on ESP32 with Wi-Fi @16MB Flash, 8MB PSRAM
• Integrated camera, proximity sensor, speaker, real-time clock, I2S amplifier, dual microphones, capacitive touch screen, power button, reset button, and gyroscope
• Rugged glass-based construction
• Supports OTG and CDC
• Uses AXP2101 power management for a low-power design

Includes

• 1 x StackChan Core
• 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)

Applications

• StackChan main unit replacement

Specifications
