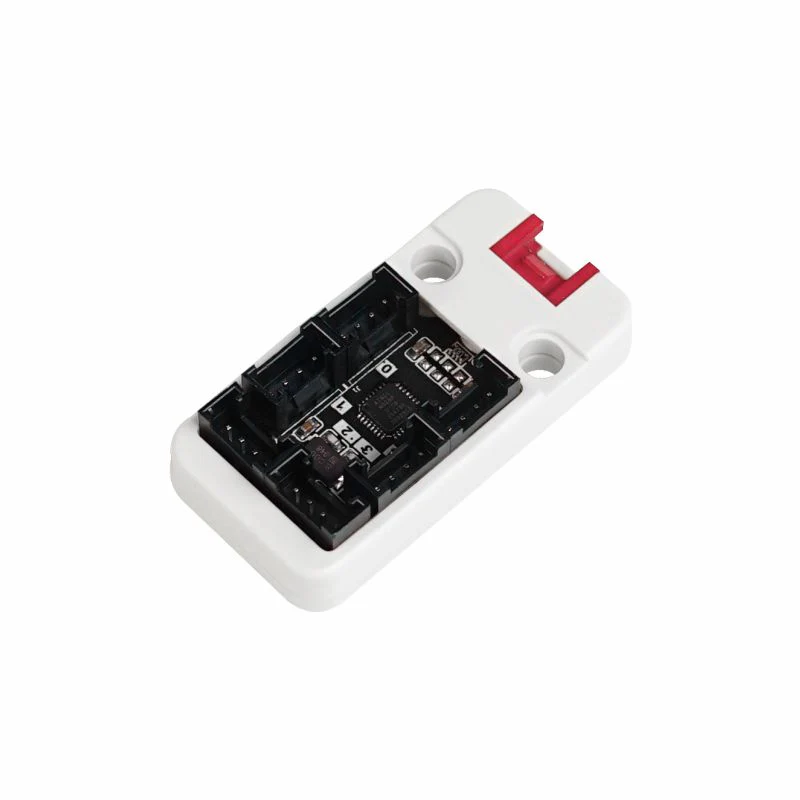

[EOL] I/O Hub 1 to 6 Expansion Unit (MEGA328)
Product Status Notice This product is EOL (End of Life). Please order the new version: Unit PbHub v1.1
Description
Unit PbHub is a GPIO HY2.0-4P PORTB expander that can extend a single GPIO Grove interface to six channels. It integrates an MEGA328 internally and comes with a driver. It does not support multiple Unit nesting, meaning it cannot mount multiple devices with the same protocol and address like PaHUB.
Features
- GPIO HY2.0-4P PORTB expansion
- 2 x LEGO-compatible holes
- 1-6 expansion
Includes
- 1 x Unit PbHub
- 1 x HY2.0-4P Grove cable (20cm)
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| Protocol | I2C @0x61 (modifiable via resistors A0, A1, A2) |
| Product Size | 48.0 x 24.0 x 10.8mm |
| Product Weight | 7.1g |
| Package Size | 138.0 x 93.0 x 11.8mm |
| Gross Weight | 12.4g |
Learn and Documents
