M5StickC Vibration HAT
Description

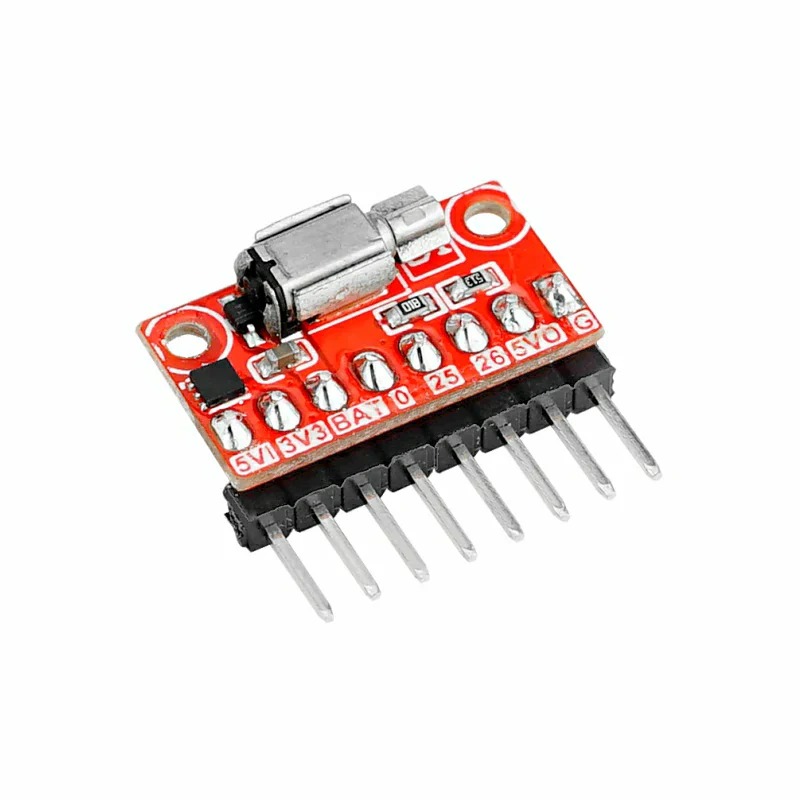

The Hat Vibrator is a vibration motor compatible with the M5StickC/C-Plus series. It uses a cylindrical iron core patch motor model Z3OC1T8219731, with a motor speed of 12000 RPM. This product can produce various vibration effects, such as increasing or decreasing vibration levels, creating a "click" effect, generating different buzzer effects, and even vibrating in response to music/audio input. It can be applied to various electronic products for information prompts and touch feedback.
Features
- Motor rotates in a clockwise direction
- Speed: 12000 RPM
- Compatible with StickC/C-PLUS
- Supports platforms UIFlow, Arduino
Includes
- 1 x Hat Vibrator
- 1 x Double-sided tape
Applications
- Touch feedback
- Vibration information prompts
Specifications
| Specification | Parameter |
|---|---|
| Motor Model | Z3OC1T8219731 Motor |
| Motor Structure | 4 × 3mm Iron Core SMD Motor |
| Motor Poles | 2 Poles (Built-in Magnetic Steel) |
| Rated Voltage | 3.0V |
| Rated Current | 85mA |
| Rated Speed | 12000RPM |
| Operating Voltage | 2.3V ~ 4.5V |
| Operating Environment | 0~95% RH , 0-40℃ |
| Vibration Frequency | 10 ~ 55Hz |
| Product Size | 24.0 x 21.0 x 14.0mm |
| Product Weight | 4.7g |
| Package Size | 136.0 x 92.0 x 14.0mm |
| Gross Weight | 7.1g |
