Description

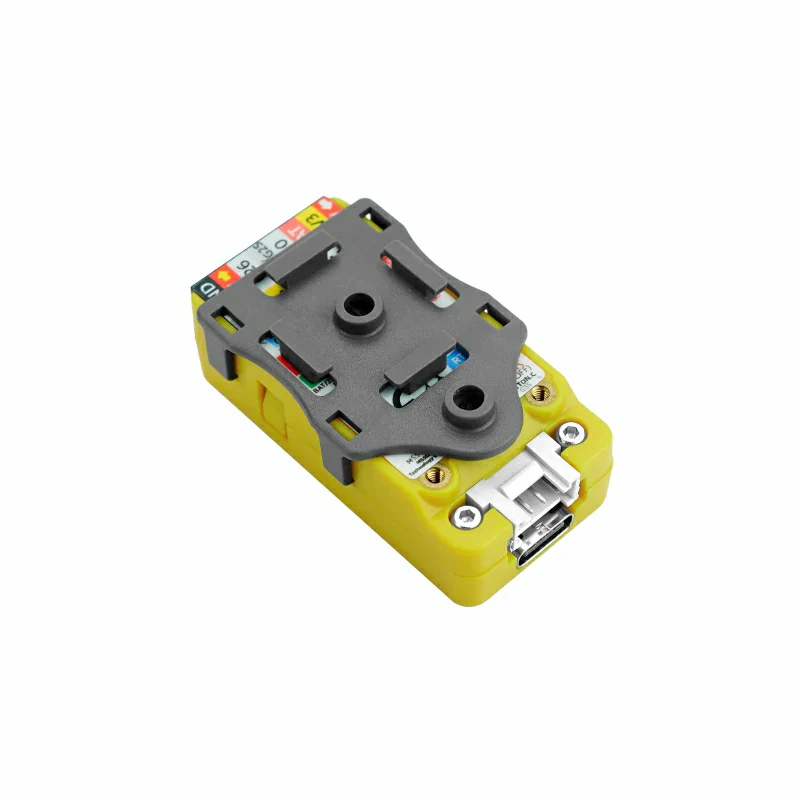

StickC-Plus2 Watch Kit is a smartwatch kit that includes the M5StickC Plus2 IoT development board and a series of watch strap accessories. Leveraging the powerful hardware resources and expandability of the StickC-Plus2 itself, it can be used not only for time display but also for applications such as activity monitoring and smart home control. When paired with the M5Stack HAT hardware ecosystem for secondary development, it can unleash even more application possibilities for smart wearables.

Features

• Personalized support for custom display
• 200mAh battery
• Lightweight and portable

Includes

• 1 x StickC-Plus2
• 1 x LEGO adapter
• 1 x Wall/1515
• 1 x Watch strap
• 1 x Type-C USB (50cm)

Applications

• Smartwatch

Specifications

Specification	Parameter
SoC	ESP32-PICO-V3-02@Dual-Core Processor, 240MHz Main Frequency
Flash	8MB
PSRAM	2MB
Wi-Fi	2.4 GHz Wi-Fi
Input Voltage	5V@500mA
Interface	USB Type-C x1, GROVE (I2C+I/O+UART) x1
LCD Screen	1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2
Microphone	SPM1423
Buttons	Custom Buttons x3
Power Indicator LED	Green LED x1 (Non-Programmable)
RTC	BM8563
Buzzer	Onboard Buzzer
MEMS	MPU6886
Antenna	2.4G 3D Antenna
External Pins	G0, G25/G26, G36, G32, G33
Battery	200mAh@3.7V, inside
Operating Temperature	0~40°C
Strap Size & Weight	230 x 22 x 6mm / 12.3g
Product Size	38.0 x 26.7 x 10.6mm
Product Weight	28.8g
Package Size	125.0 x 65.0 x 23.0mm
Gross Weight	72.0g
