Description

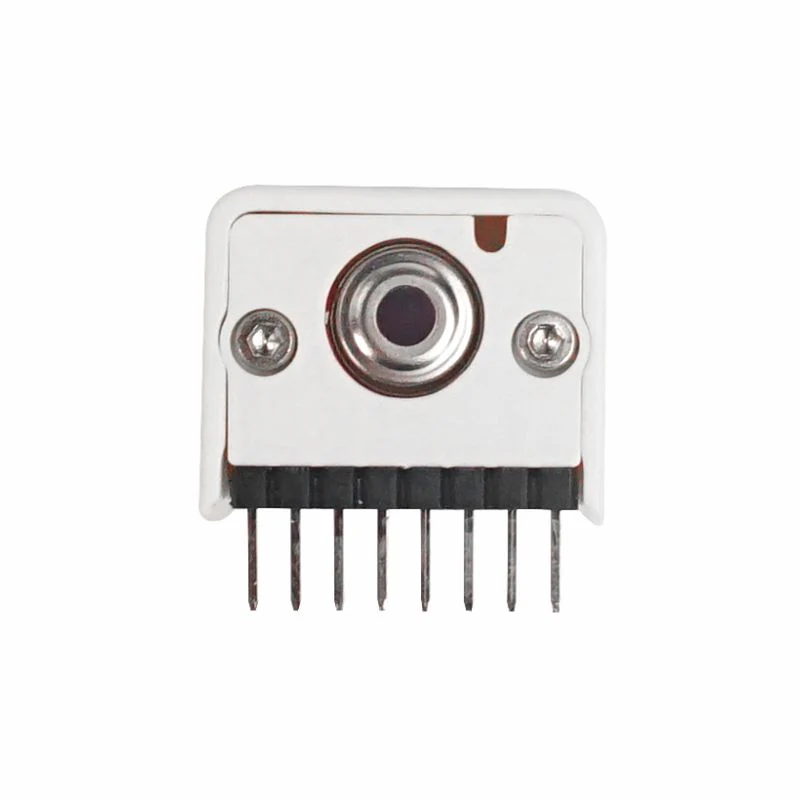

Hat NCIR is a single-point infrared temperature measurement sensor compatible with M5SticKC. Built-in infrared sensor MLX90614, capable of measuring the surface temperature of the human body or other objects. Unlike most contact-type sensors, this sensor detects temperature by measuring the infrared light waves emitted from distant objects without physical contact, which gives it a wider measuring range than ordinary sensors: -70°C to +380°C. With a field of view (FOV) of 90°, it can conveniently and quickly measure the average temperature at a given location.

Features

• MLX90614ESF-AAA
• I2C address (0x5A)
• Object temperature measurement range: -70°C ~ 380°C
• Ambient temperature measurement range: -40°C ~ 125 ˚C
• Measurement accuracy at room temperature: ±0.5°C
• Field of view: 90°
• Development Platform: Arduino, UIFlow (Blockly, Python)

Includes

• 1 x Hat NCIR
• 1 x Double-Sided Tape

Applications

• Human body temperature measurement
• Object (biological) motion detection
