[EOL] M5StickC 8Servos HAT
Description

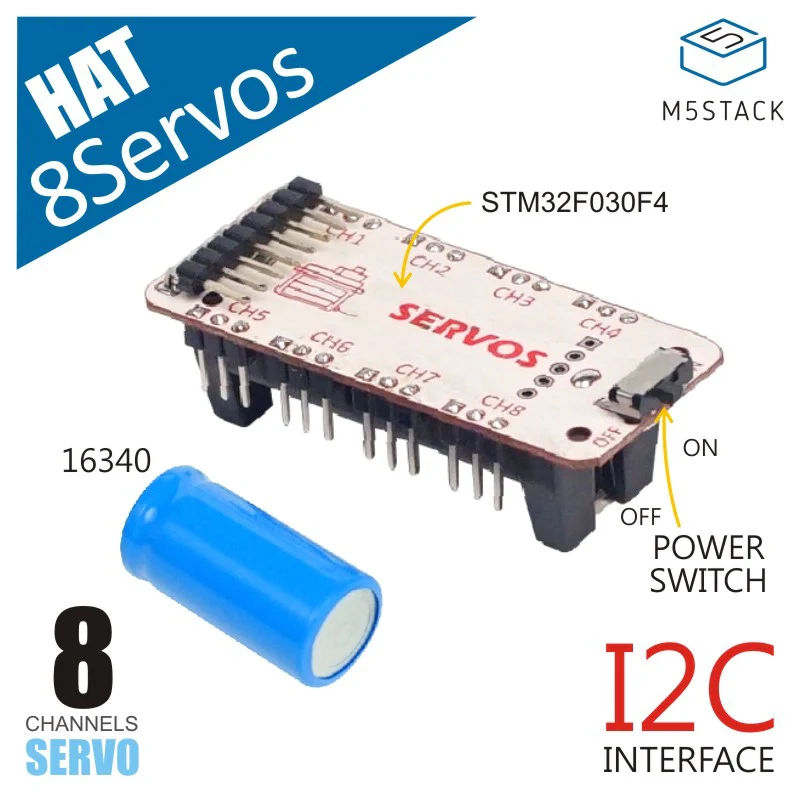

Hat 8Servos is an 8-channel servo control board compatible with M5StickC, with the main controller being STM32F030F4, communicating with M5StickC via I2C. To ensure multiple servos work simultaneously, the control board is equipped with an independent 16340 battery holder for power supply, controlled by an independent switch. Additionally, an RGB indicator light is integrated on the control board. You can use it to control SG90 servos for precise angle operations.
Features
- Eight-channel servo control
- 1x RGB LED
- 16340 battery holder
- I2C protocol control (0x38)
Includes
- 1 x Hat 8Servos
- 1 x 16340 battery (700mAh)
Applications
- Servo controller
- Robot control
- Smart toys
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32F030F4P6 |
| Communication Port | I2C @0x38 |
| Product Size | 54.0 x 24.0 x 20.0mm |
| Product Weight | 27.0g |
| Package Size | 75.0 x 46.0 x 29.0mm |
| Gross Weight | 38.0g |
Learn and Documents
