Description

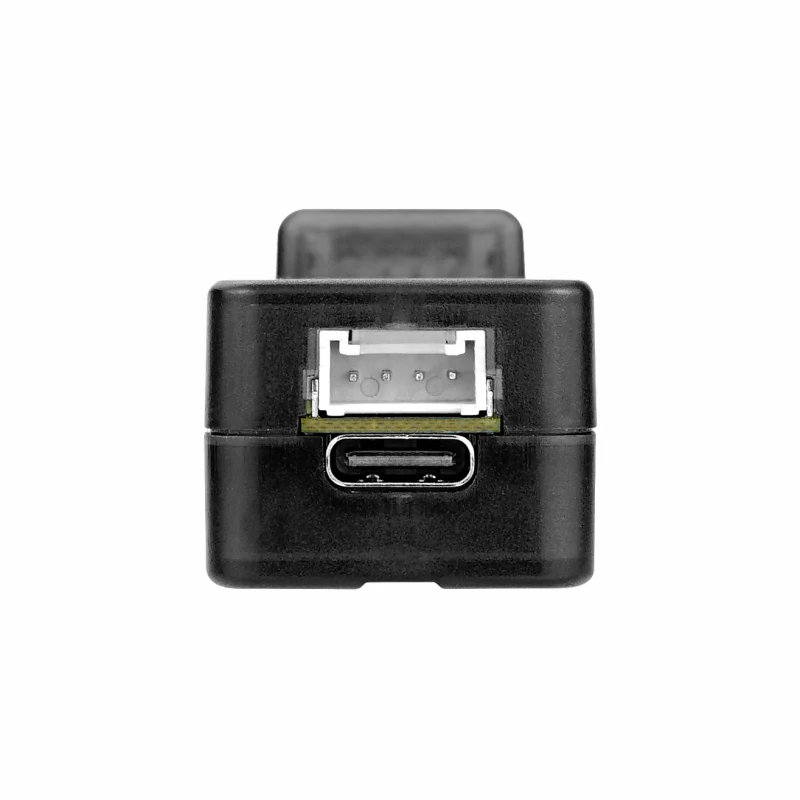

UnitV2-USB is a high-efficiency AI recognition module launched by M5Stack, powered by the Sigmstar SSD202D (integrated dual-core Cortex-A7 1.2GHz processor) as the control core, with 128MB DDR3 memory and 512MB NAND Flash. It provides a USB Type-A universal interface to connect a variety of UVC cameras, comes with a built-in Linux operating system, and integrates rich software and hardware resources as well as development tools. It is designed to offer users an out-of-the-box, simple, and efficient AI development experience.

Features

• Sigmstar SSD202D
• Dual-core Cortex-A7 1.2GHz processor
• 128MB DDR3
• 512MB NAND Flash
• USB-A universal interface, supports connection to various UVC cameras
• Wi-Fi 2.4GHz
• Development methods:
  • Comes with 12 commonly used AI image functions: QR code, face detection, line following, motion detection, template matching, image streaming, classification, color tracking, face recognition, object tracking, contour detection, custom object recognition
  • Supports web online preview, UiFlow (for serial port JSON format calls)
  • Linux environment (OpenCV, SSH, JupyterNotebook)

Includes

• 1 x UnitV2-USB
• 1 x 16GB microSD Card
• 1 x USB Type-C Cable (50cm)
• 1 x Stand
• 1 x Back Clip

Applications

• AI recognition function development
• Industrial vision classification
• Machine vision learning

Specifications
