Description

CoreS3 is the third-generation main controller of the M5Stack development kit series, based on the ESP32-S3 solution featuring a dual-core Xtensa LX7 processor running at 240 MHz with built-in Wi-Fi. It integrates 16MB Flash and 8MB PSRAM. Programs can be downloaded through the USB Type-C port, and OTG & CDC functions are supported for connecting USB devices and flashing firmware.

The front houses a 2.0-inch capacitive-touch IPS panel protected by high-strength glass. Below the screen is a 0.3MP GC0308 camera paired with an LTR-553ALS-WA proximity sensor. Power is managed by an AXP2101 PMU and four power-path control circuits, delivering a low-power design. Onboard sensors include a six-axis IMU BMI270 and a magnetometer BMM150. Additional peripherals comprise a microSD slot and a BM8563 RTC, enabling precise time-keeping plus sleep/timed-wake-up functions.

For audio, a 16-bit I2S amplifier AW88298 drives the built-in 1W speaker, while an ES7210 audio codec provides dual-microphone input. Independent POWER and RESET (RST) buttons are located on the side; long-pressing the RESET button enters download mode via a self-built delay circuit.

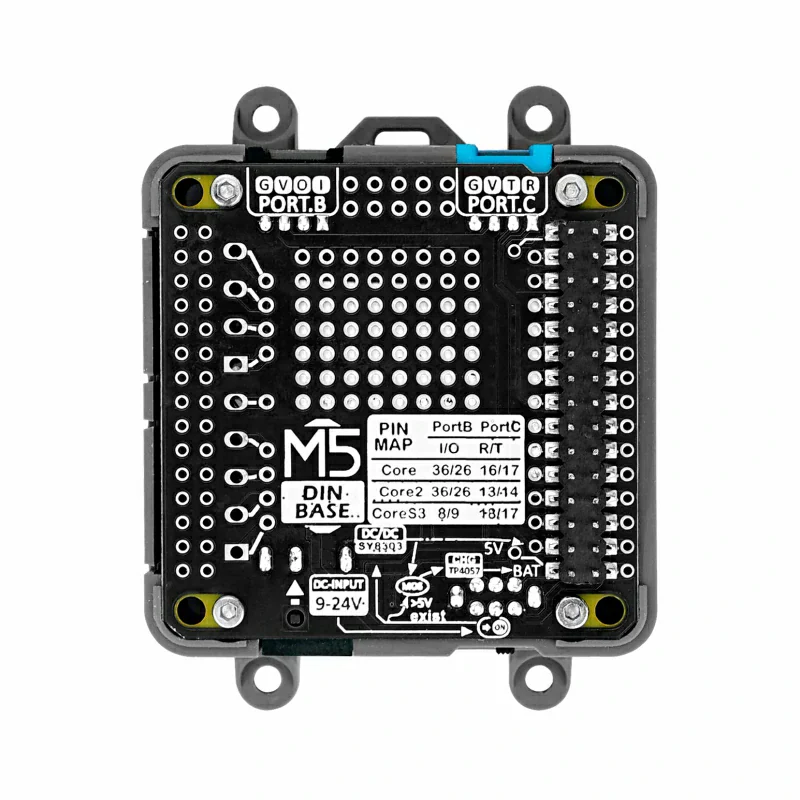

The kit ships with a DinBase for DIN-rail, wall-mount or screw mounting. It can be powered by an external DC 12V (9 ~ 24V) supply or an internal 500mAh Li-ion battery. Multiple proto areas on the DinBase ease DIY expansion.

Ideal for IoT development, DIY projects, smart-home control systems and industrial automation control systems.

Features

• ESP32-based development, Wi-Fi, 16 MB Flash, 8 MB PSRAM
• Built-in camera, proximity sensor, speaker, power-indicator LED, RTC, I2S amplifier, dual microphones, capacitive touch screen, power button, reset button, gyroscope
• microSD slot
• High-strength glass panel
• Supports OTG & CDC functions
• AXP2101 power management, low-power design
• Development Platform
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 × CoreS3
• 1 × DinBase
• 1 × Hex Key L-Shape 2.5 mm (For M3 Screw)
• 4 × Screw Buckle
• 1 × Rail-mount Base Buckle
