Description

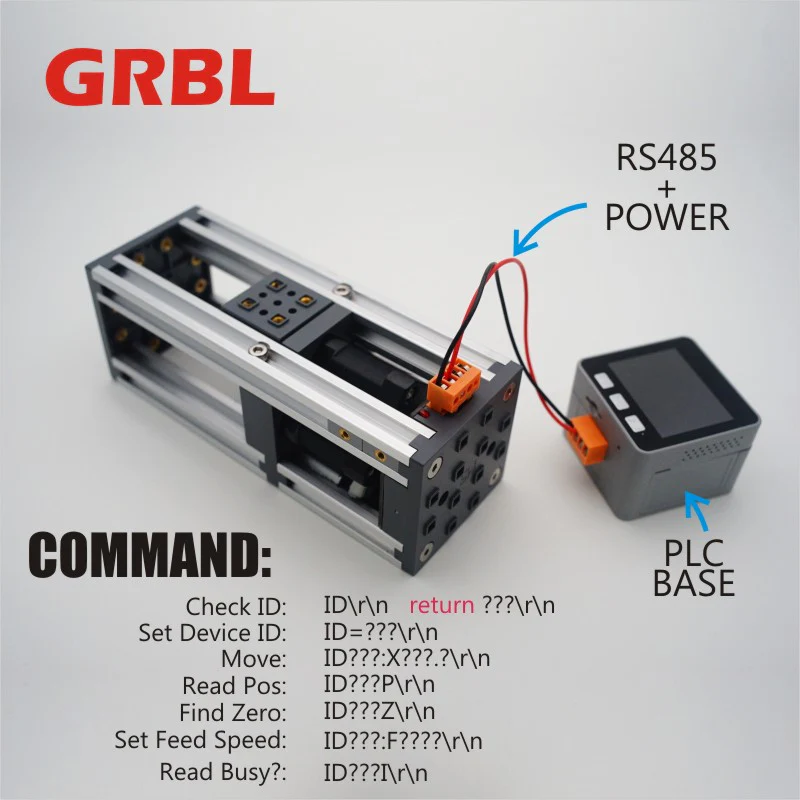

6060-Push is a motion control module within the M5Stack structural system. It features a high-precision stepper motor, a Mega328 microprocessor, and a 1515 aluminum profile frame. By writing control programs, you can control the stepper motor. The module communicates via the RS485 serial bus, enabling high-precision displacement. It is suitable for various motion control scenarios, such as 3D printing and linear motion control.

Features

• Built-in Mega328: GRBL
• Customizable: Body length & effective stroke
• RS485 communication
• 1515 aluminum profile frame
• 48 stepper motor: Two-phase, four-wire system
• Stroke: 57mm
• Input voltage: 12-24V
• Motor power: 10W

Includes

• 1x 6060-Push module

Applications

• 3D printing
• Linear motion control

Specifications
