Description

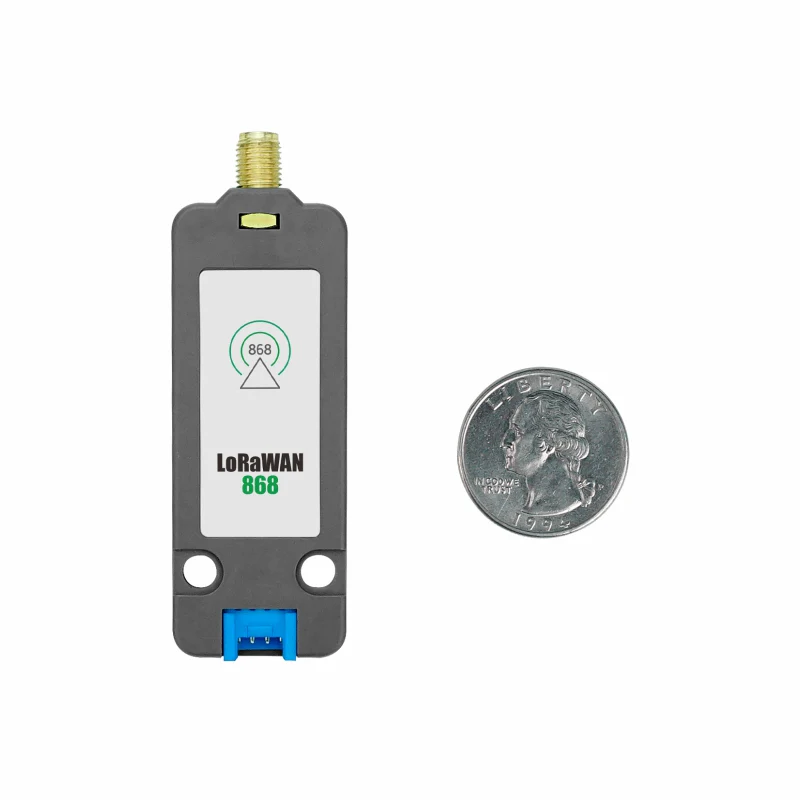

Unit LoRaWAN868 is a LoRaWAN communication module launched by M5Stack, designed for the 868MHz frequency. The module adopts the ASR6501 solution, supporting long-distance communication while featuring ultra-low power consumption and high sensitivity. The module integrates the LoRaWAN protocol stack and uses a serial communication interface (controlled via AT commands). It can be used as a collection node to connect to gateways in large numbers for data collection and management. This module is suitable for long-range, low-power IoT communication applications, such as environmental monitoring node deployment.

Features

• ASR6501
• Operating Frequency: 868MHz
• SMA Antenna
• Communication Interface: UART
• Command Protocol: AT Commands

Includes

• 1 x Unit LoRaWAN868
• 1 x SMA Antenna
• 1 x HY2.0-4P Grove Cable (20cm)

Applications

• Automatic Remote Meter Reading
• Smart Traffic and Smart Parking
• Remote Irrigation and Environmental Monitoring

Specifications
