Description

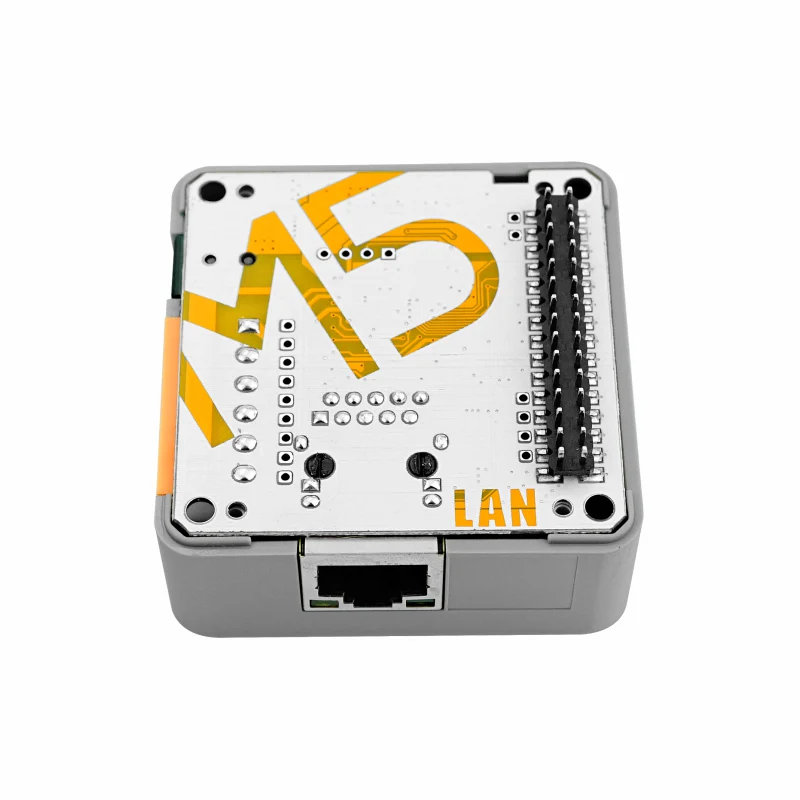

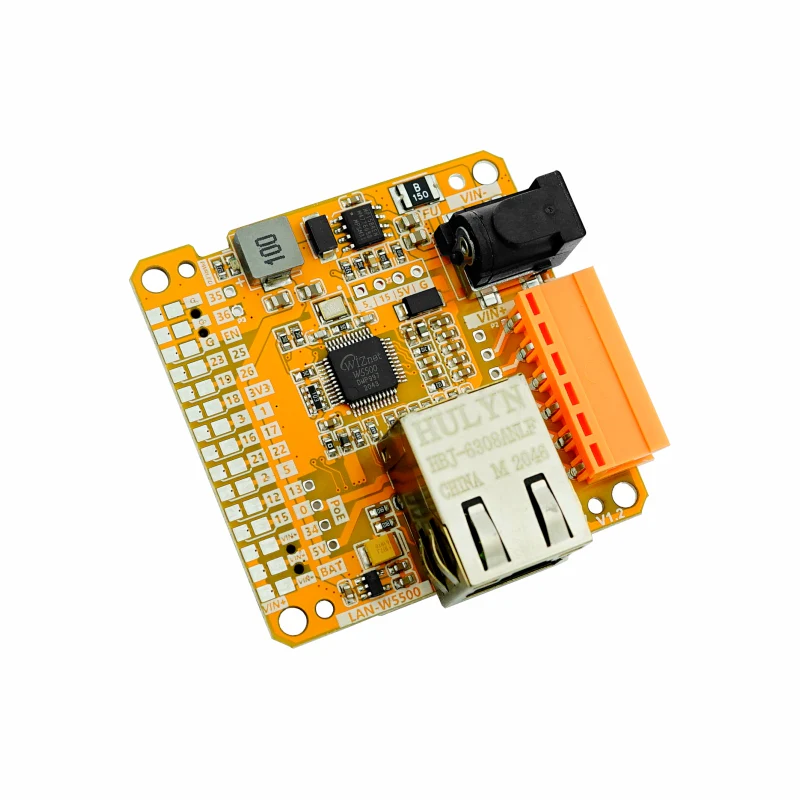

Base LAN v1.2 is an Ethernet controller base with a built-in W5500 full hardware TCP/IP embedded Ethernet controller (SPI communication interface), supporting multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, etc.) and integrating storage buffers for easier Ethernet packet handling. Reserved expansion pads inside can be used to add RS485/RS232 communication adapter modules or custom designs. It comes standard with mounting rail accessories, combining performance and expansion flexibility to provide a more streamlined embedded Ethernet connection.

Features

• Meets wired network access requirements in real production environments.
• Specifically designed for industrial applications:
  • Metal slide rail for easy installation and mounting
  • Equipped with HT3.96 terminal for electrical connection
  • Supports input power voltage: 9-24V
• Comes standard with TTL-RS485 + TTL-RS232 adapter boards to suit different communication interfaces.

Includes

• 1 x Base LAN v1.2
• 1 x RS485-to-TTL Converter Board
• 1 x RS232-to-TTL Converter Board
• 1 x HT3.96-4P Terminal
• 2 x HT3.96-3P Terminal
• 1 x Hex Key L-Shape 1.5mm
• 1 x Hex Key L-Shape 2.0mm
• 1 x Hex Key L-Shape 2.5mm
• 10 x 2mm Crimp Terminal
• 1 x Magnet (Center Hole, 15mm Diameter, 3mm Thickness)
• 1 x 35mm Silver Metal DIN Rail
• 1 x 35mm Black DIN Rail Clip
• 1 x M3 * 6mm countersunk head machine screw
• 2 x M3 * 28mm cap head machine screw
• 4 x M2 * 5mm cap head self-tapping screw
• 1 x 2.54mm-20P Straight Male Header (Overall Height 5.32mm)
• 1 x Product Sticker

Applications

• M5Core + LAN for transmission with controller
• PC to Core wired video data transmission
