Description

Base LAN is an Ethernet controller base. It is equipped with a W5500 full hardware TCP/IP embedded Ethernet controller, providing an easier internet connection solution for embedded systems. Designed specifically for industrial application scenarios, it comes with a metal slide rail and magnetic disk for easy installation and mounting, and is equipped with HT3.96 terminals for electrical connections. It can meet the wired network access needs in actual production environments.

Features

• Input power voltage: 9-24V
• HT3.96 terminal
• Supports RS485 communication
• Simple mounting method

Includes

• 1 x Base LAN
• 1 x TTL-RS485 Adapter Board
• 1 x 20-pin Header

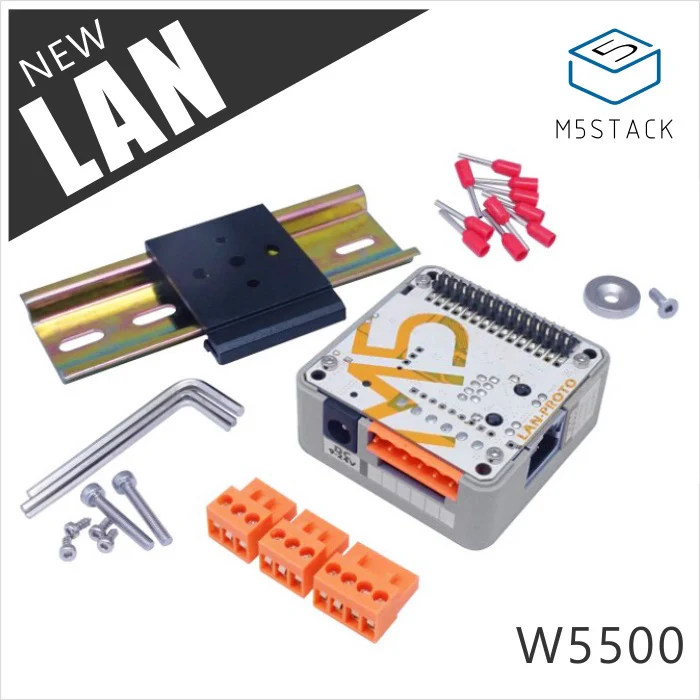

• 1 x Metal Rail and Magnetic Disk
• 3 x HT3.96 Terminals
• 2 x 3-pin
• 1 x 4-pin
• 10 x Cold-pressed Terminals
• 3 x Hex Key L-Shape
  • 1 x 1.5mm
  • 1 x 2mm
  • 1 x 2.5mm
• 2 x M3x28 Hex Screws
• 4 x KA2x4 Hex Self-tapping Screws
• 1 x M3x8 Countersunk Screw

Applications

• M5Core + LAN to enable transmission with controller
• PC to Core wired transmission of video data
