Description

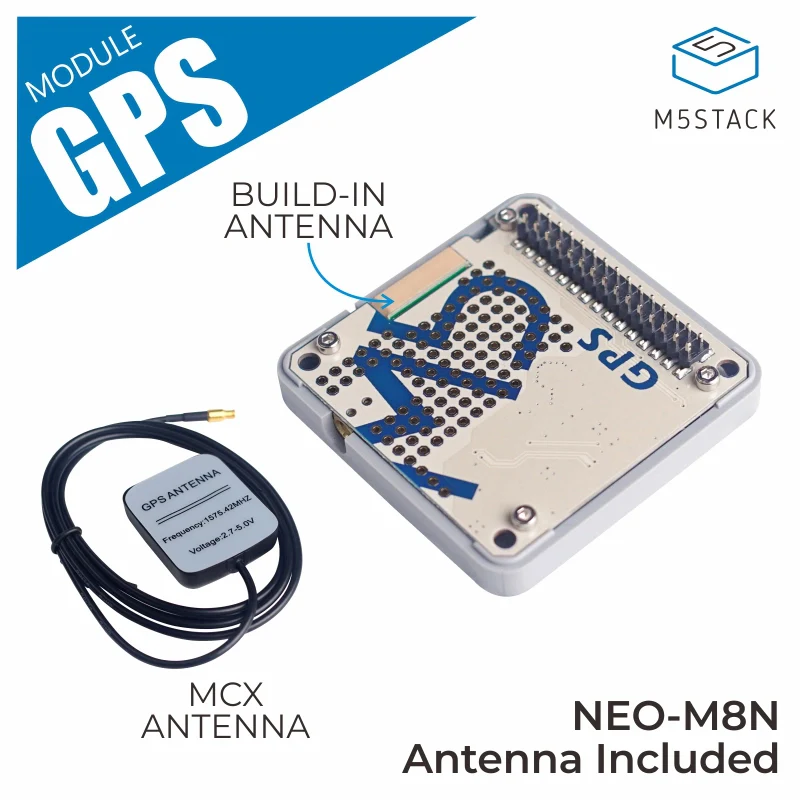

Module GPS is a satellite positioning module in the M5Stack stackable module series. It is developed based on the NEO-M8N module and comes with an active antenna. The NEO-M8 can achieve high-sensitivity acquisition with minimal time and maintain low power consumption. The NEO-M8N integrates a 72-channel u-blox M8 GNSS engine, supporting multiple GNSS systems: BeiDou, Galileo, GLONASS, GPS/QZSS, allowing simultaneous reception of data from three GNSS systems.

Features

• Operating Temperature: -40 ~ 80°C
• Antenna Type: Built-in ceramic antenna and external antenna
• External Antenna Port: SMA
• Can receive data from three GNSS systems simultaneously
• Horizontal Position Accuracy: Minimum 2.5m
• GPS Module (NEO-M8N) with built-in flash memory, firmware upgradeable via u-center-just-for-Windows
• Supported Protocols: NMEA, UBX, RTCM
• Industry-leading -167dBm sensitivity
• Backward compatible with NEO‑7 and NEO‑6 series
• UART Communication Interface:
  • Baud Rate (default 9600bps)
  • Data Bits (8 bits)
  • Start Bit (1 bit)
  • Stop Bit (1 bit)
  • Parity Bit (none)

Includes

• 1 x Module GPS
• 1 x External Antenna (Length: 1 m)

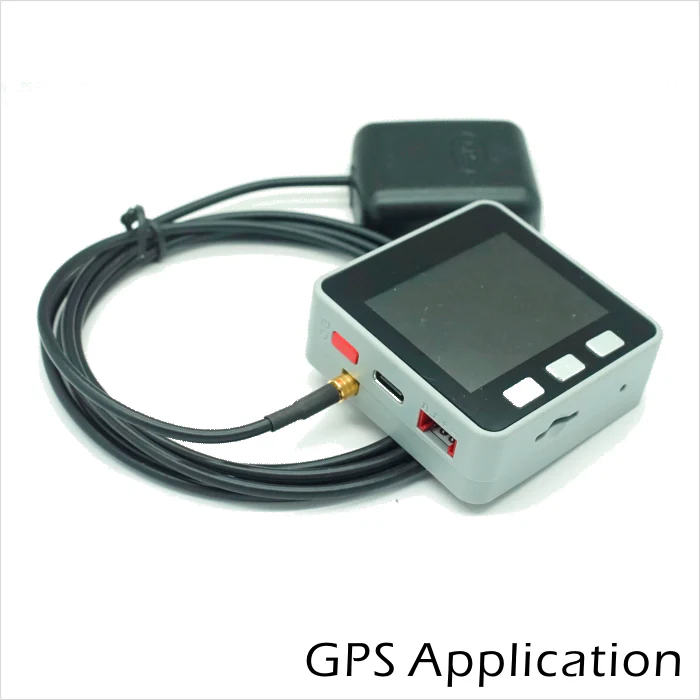

Applications

• GPS-based logistics tracking management
• Autonomous vehicle positioning

Specifications
