[EOL] PSRAM Fisheye Camera Module (OV2640)
Product Status Notice This product is EOL (End of Life). Please order the new version: TimerCamera-F
Description

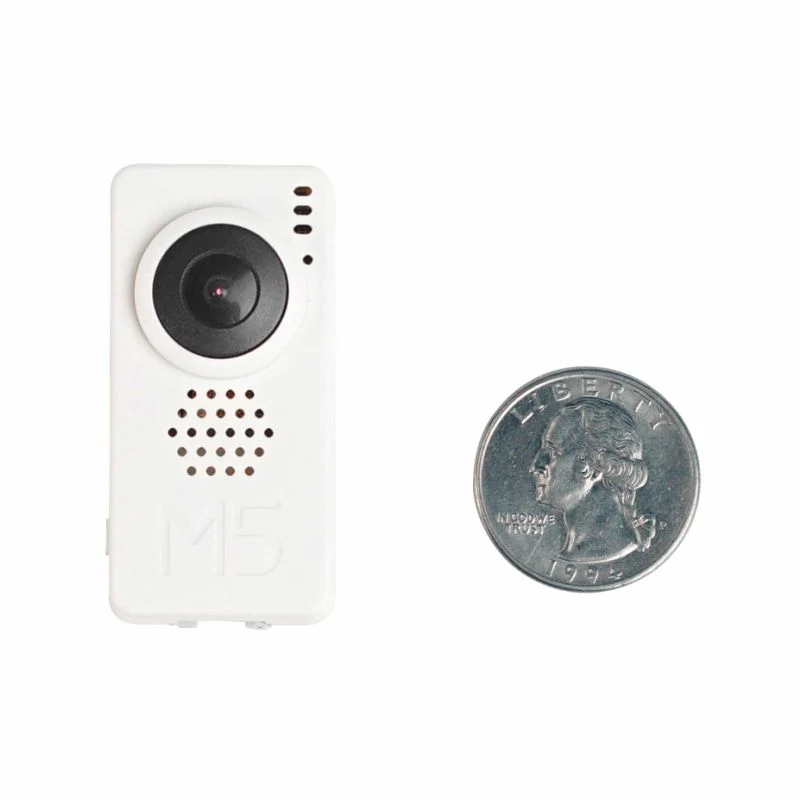

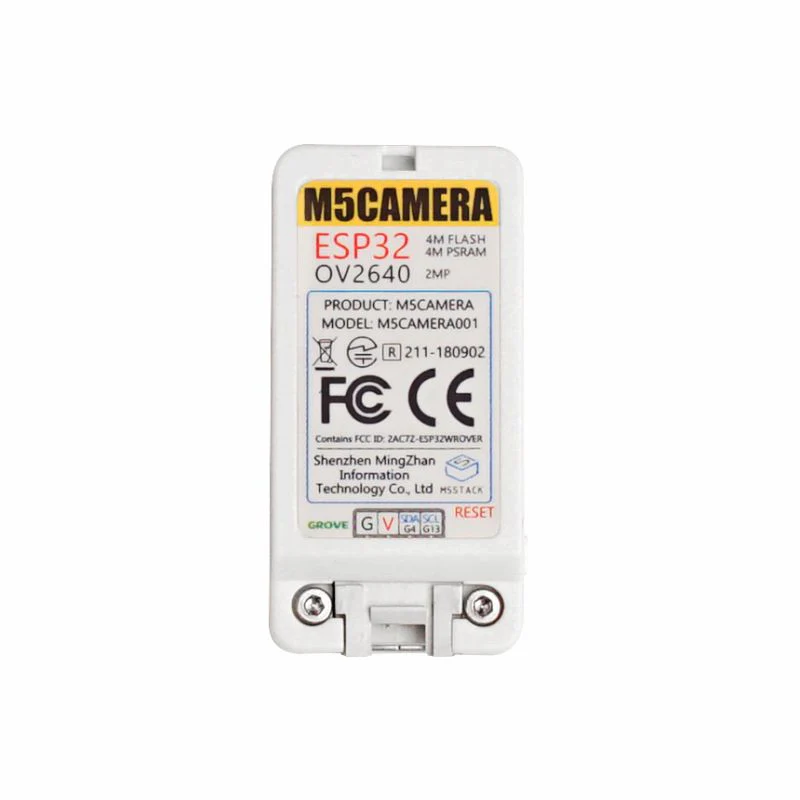

M5Camera-F is a fisheye wide-angle image recognition development board, integrating the ESP32 (4M Flash + 520K RAM + 4M PSRAM) chip and a 2MP camera (OV2640). It supports WiFi image transmission and USB port debugging.
Features
- ESP32-based design
- WIFI image transmission
- CP2104 USB TTL
- Wide-angle lens
- OV2640 visual sensor
Includes
- 1 x M5Camera-F

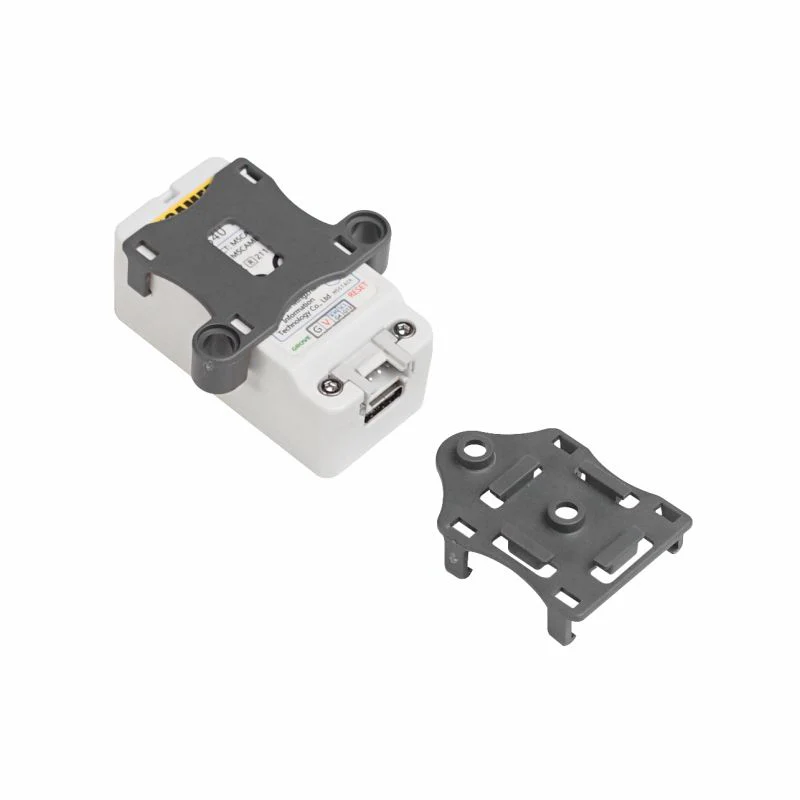

- 1 x LEGO adapter clip
- 1 x Wall/1515
- 1 x USB Type-C cable (20cm)
Specifications
| Specification | Parameter |
|---|---|
| Flash | 4M |
| RAM | 4MB |
| Image Sensor | OV2640 |
| Maximum Resolution | 2MP |
| Output Format | YUV (422/420) /YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
| Field of View | 160° |
| CCD Size | 1/4 inch |
| Net Weight | 17g |
| Gross Weight | 41g |
| Product Size | 24 x 48 x 19mm |
| Package Size | 75 x 45 x 30mm |
