Description

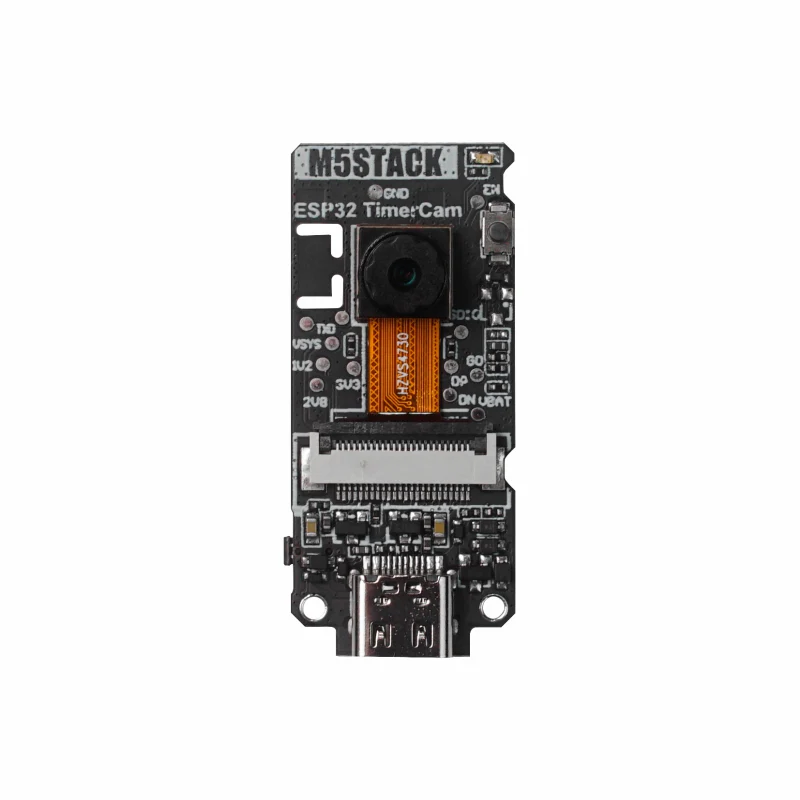

TimerCamera is a camera module based on the ESP32-D0WDQ6-V3, equipped with an onboard 8MB PSRAM and a 3MP camera (OV3660) with a DFOV of 66.5°, capable of capturing photos at resolutions up to 2048x1536. It features a status indicator and a RESET button, focusing on ultra-low power consumption design. Through the RTC (BM8563), it supports timed sleep and wake functions, with sleep current as low as 2μA. The board has a reserved battery connector for user-supplied battery power. The module supports Wi-Fi image transmission and USB port debugging, with a bottom HY2.0-4P port output for connecting other peripherals. Using M5Burner to flash the firmware, the TimerCamera can be configured directly via Camera-Tool, or the data can be processed in UiFlow.

Features

• Designed based on ESP32
• Wi-Fi image transmission
• Timed sleep and wake
• Status indicator
• Ultra-low power consumption design
• Development Platform: ESP-IDF / Arduino / UiFlow

Includes

• 1 x TimerCamera

Applications

• Timed photography
• Remote monitoring

Specifications
