Description

TimerCamera-F is a fisheye camera module based on ESP32-D0WDQ6-V3, with onboard 8M PSRAM and 4M Flash. It features a 3MP camera (OV3660) with a DFOV of 120°, capable of capturing photos at a maximum resolution of 2048x1536. The camera is designed with ultra-low power consumption in mind, with an integrated RTC (BM8563) that exposes the IRQ signal for device sleep and timed wake-up (sleep current can be as low as 2μA). With timed photo capture (one photo per hour), the built-in 270mAh battery can provide over a month of battery life. The module supports WiFi image transmission and USB port debugging, with a HY2.0-4P port output at the bottom for expanding other peripherals. The onboard LED status indicator and reset button facilitate program development and debugging. In terms of applications, M5Stack provides some simple and efficient application development methods and interfaces for the TimerCAM series, offering convenience for user usage and development. (Including PC/Mobile photo capture apps, cloud-based HTTP interfaces for timed photo capture, etc.)

Features

• ESP32-based design
• WiFi image transmission
• Timed sleep and wake-up
• Status indicator
• Ultra-low power design
• Built-in 270mAh battery
• Programming platforms: ESP-IDF/Arduino/UIFlow

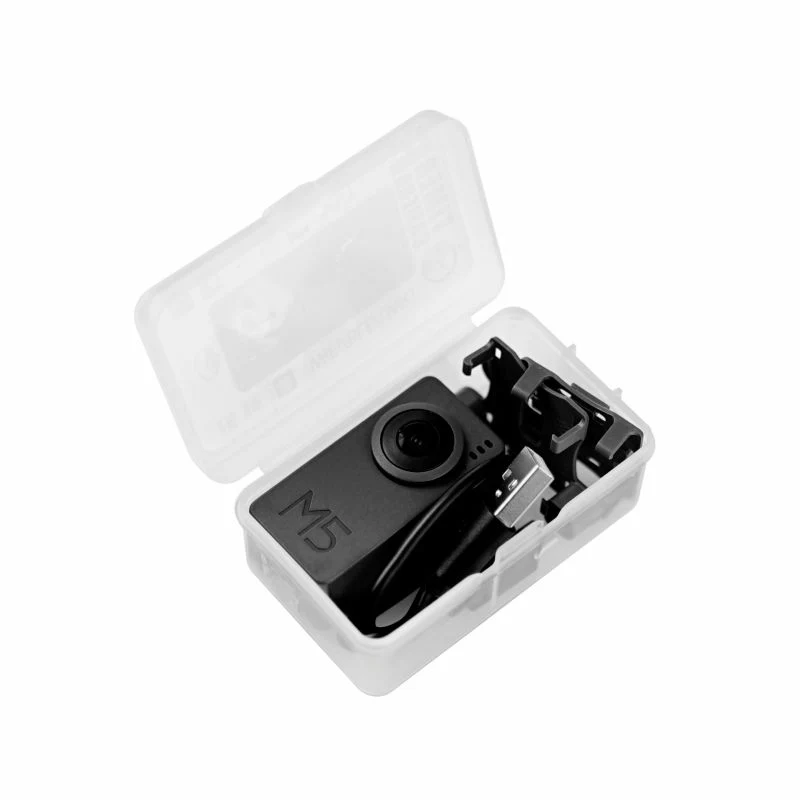

Includes

• 1 x TimerCamera-F
• 1 x LEGO Adapter
• 1 x Wall-1515
• 1 x USB Type-C cable (20cm)

Applications

• Timed photo capture
• Remote monitoring

Specifications
