Description

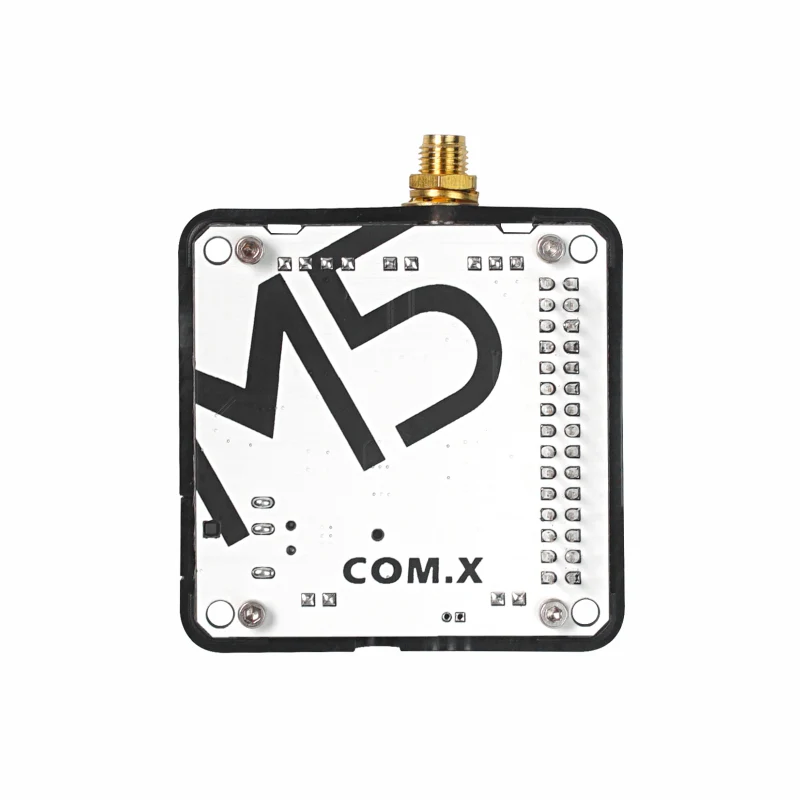

Module COMX LTE-Data is a stackable multifunctional LTE communication module with a built-in LTE module A7600C1, supporting LTE-TDD/LTE-FDD/EDGE/GPRS and GSM frequency bands, with a transmission rate of LTE.CAT4 standard. It features stable performance, compact size, and high cost-effectiveness, enabling low-power data transmission. The module comes with a DC power input, allowing external power supply of 5 ~ 12V. For user convenience in pin configuration, a DIP switch is used to set the pins. This module is particularly suitable for IoT industries such as remote meter reading, smart parking, and municipal management, where low power consumption and ultra-small size are core requirements.

Features

• Stackable design
• External independent power supply
• AT command control
• SIM card type: MicroSIM
• Status signal: Two LED indicators
• External antenna: SMA antenna
• Serial communication: UART 115200bps
• Frequency bands:
  • LTE-TDD B34/B38/B39/B40/B41
  • LTE-FDD B1/B3/B5/B8
  • GSM/GPRS/EDGE 900/1800 MHz
• Data transmission:
• LTE Cat 1
  • Uplink max 5Mbps
  • Downlink max 10Mbps
• EDGE
  • Uplink/Downlink max 236.8Kbps
• GPRS
  • Uplink/Downlink max 85.6Kbps
• Supported protocols
  • TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS
  • RNDIS/PPP/ECM
  • SSL

Includes

• 1 x Module COMX LTE-Data
• 1 x SMA antenna

Applications

• Smart metering
• Smart parking
• Municipal management
