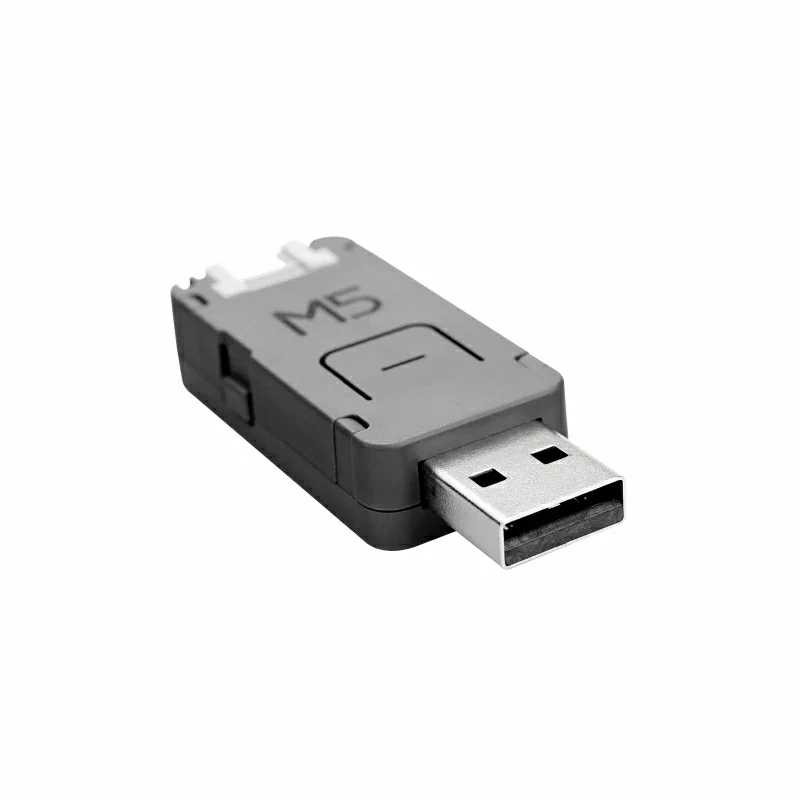

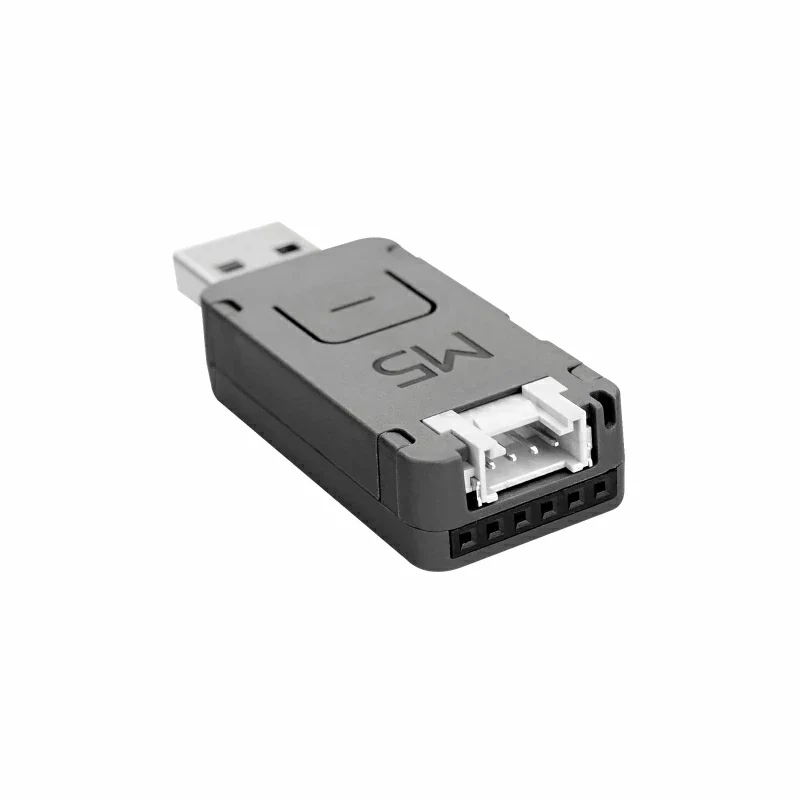

[EOL] AtomU ESP32 Development Kit with USB-A
Description

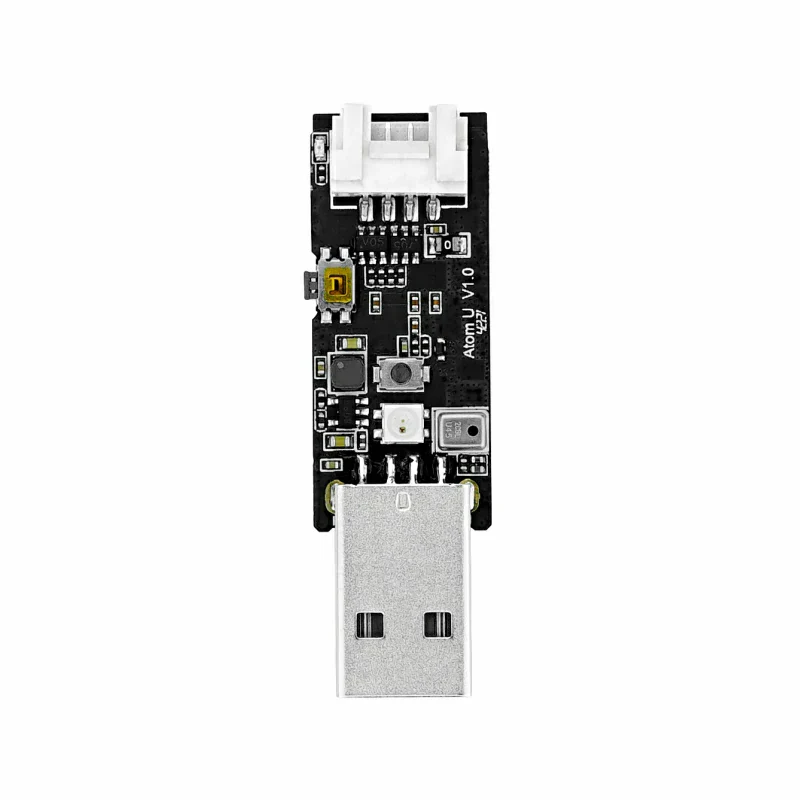

AtomU is an ultra-compact and flexible IoT voice-recognition development board powered by Espressif’s ESP32. It is equipped with two low-power Xtensa® 32-bit LX6 microprocessors running at up to 240 MHz. The board integrates peripherals such as a USB Type-A interface, IR transmitter, and a programmable RGB LED, allowing true plug-and-play use for uploading, downloading, and debugging firmware.
With its built-in Wi-Fi module and on-board digital microphone SPM1423 (PDM), AtomU enables clear audio recording, making it ideal for human–machine interaction and speech-to-text (STT) applications in various IoT scenarios.
Features
- ESP32-PICO-D4 (2.4 GHz Wi-Fi)
- USB-A programming/power interface
- Integrated programmable RGB LED and button
- Ultra-compact body
- Built-in IR transmitter
- Expandable pins and GROVE interface
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 x AtomU
Applications
- IoT controller
- Voice recording & cloud STT recognition
Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32-PICO-D4@Dual-core processor, 240MHz |
| DMIPS | 600 |
| SRAM | 520KB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Microphone | SPM1423 |
| Microphone Sensitivity | 94 dB SPL @ 1 kHz, Typ.: −22 dBFS |
| Microphone SNR | 94 dB SPL @ 1 kHz, A-weighted, Typ.: 61.4 dB |
| Standby Operating Current | 40.4 mA |
| Supported Input Frequency | 100 Hz ~ 10 kHz |
| Supported PDM Clock | 1.0 ~ 3.25 MHz |
| Product Size | 53.0 x 20.0 x 10.3mm |
| Product Weight | 8.6 g |
| Package Size | 114.2 x 65.6 x 20.6mm |
| Gross Weight | 16.6 g |
