Description

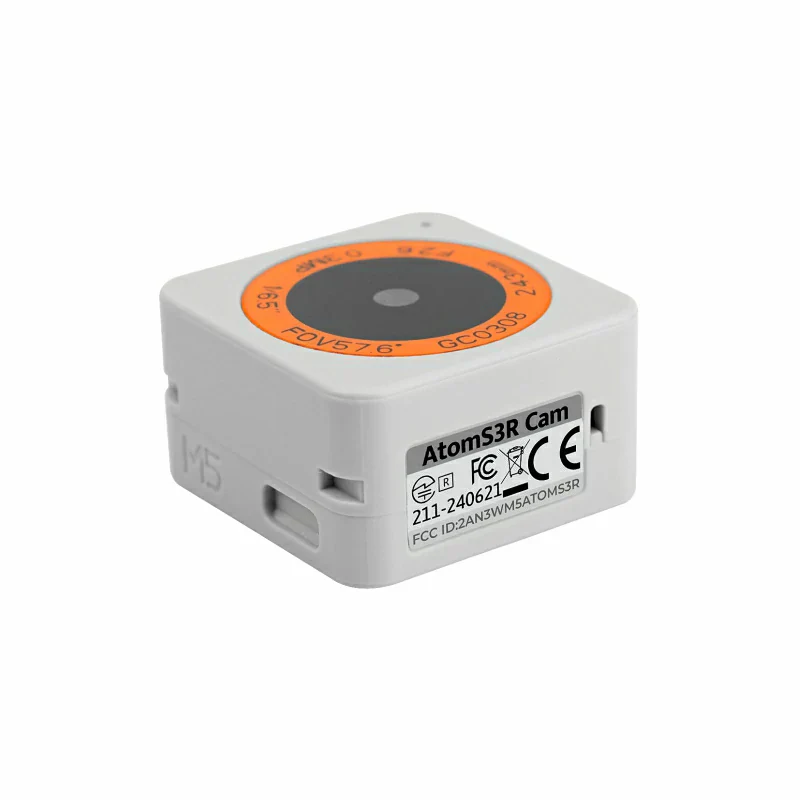

AtomS3R-CAM is a mini IoT programmable controller with an integrated camera. It is powered by the ESP32-S3-PICO-1-N8R8 SoC featuring Wi-Fi connectivity, 8MB on-chip Flash, and 8MB PSRAM. The unit carries a 5 V-to-3.3 V power-management circuit, a three-axis BMM150 geomagnetic sensor, and a six-axis BMI270 IMU. In addition, it is equipped with a 0.3 MP GC0308 camera that supports image acquisition and infrared transmission control. Protective glass is fitted in front of the camera to keep dust out and enhance image quality. Compared with previous products, the 3D antenna of AtomS3R-CAM has been enhanced to deliver higher performance and stability.

The factory firmware supports UVC (USB Video Class), allowing the device to work as a driver-free USB camera—simply connect via USB and use it directly. The product also features a USB Type-C port for power supply and firmware download, plus a HY2.0-4P expansion port. Six GPIOs and power pins are exposed on the bottom for further expansion. With compact dimensions of 24.0 x 24.0 x 13.5 mm, it is well suited for IoT monitoring, educational development tools, and other embedded scenarios.

Features

• Integrated ESP32-S3-PICO-1-N8R8 SoC
• 0.3 MP GC0308 camera
• 9-axis sensor system (BMI270 6-axis IMU + BMM150 3-axis geomagnetic sensor)
• 8MB Flash and 8MB PSRAM
• Supports infrared transmission control
• Expandable pins and interfaces
• Development Platform
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

Includes

• 1 x AtomS3R-CAM

Applications

Specifications

Specification	Parameter
SoC	ESP32-S3-PICO-1-N8R8@Dual-core Xtensa LX7, up to 240MHz
USB	USB OTG, USB Serial/JTAG
Flash	8MB
PSRAM	8MB
Wi-Fi	2.4 GHz Wi-Fi
6-axis IMU (BMI270)	Accuracy: 0.05 % (acceleration), 0.05 °/s (gyro) I2C address: 0x68
3-axis geomagnetic sensor (BMM150)	Accuracy: 0.3 µT. Mounted on BMI270, magnetometer data obtained via BMI270
Camera	GC0308. Max frame rate: 30 fps. Output formats: YCbCr4:2:2, RGB565, Raw Bayer. Aperture: F2.6. Resolution: 0.3 MP. Sensor size (diagonal): 1/6.5''. Field of view: FOV 57.6°
Camera panel material	Glass
Infrared IR	IR emission distance: 12.46 m @ ∠180° (unobstructed)
Sleep current	GPIO-5V supply: DC 5 V @ 11.63 µA; Grove-5V supply: DC 5 V @ 10.75 µA; USB-5V supply: DC 5 V @ 92.50 µA (including PD resistor loss)

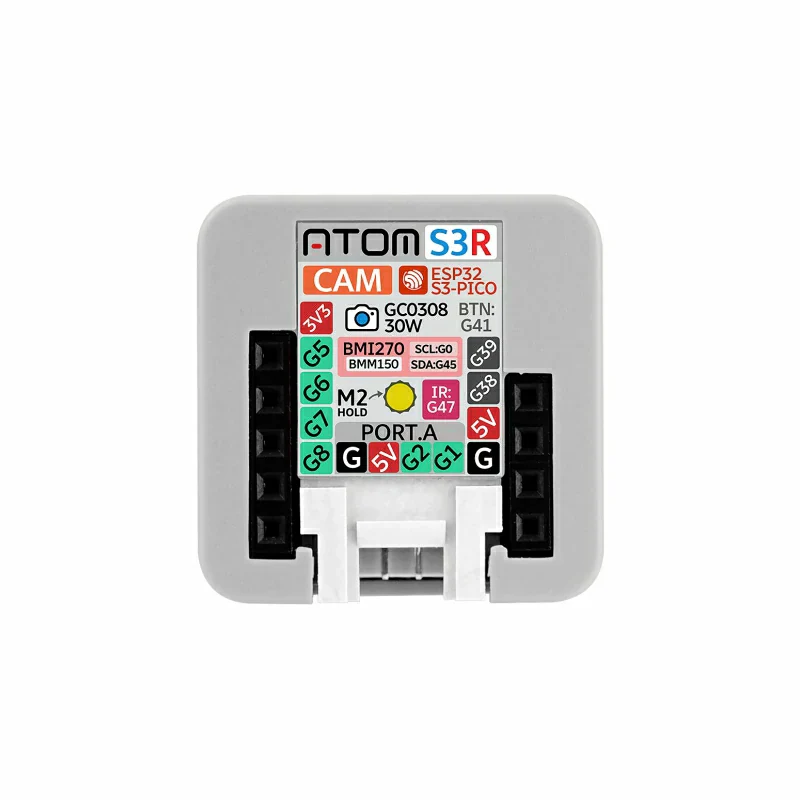

Bottom GPIO	G5/G6/G7/G8/G38/G39
Operating temperature	0 ~ 40 °C
Product Size	24.0 x 24.0 x 13.5 mm
Product Weight	7.4 g
Package Size	85.0 x 65.0 x 14.3 mm
Gross Weight	13.6 g
