Atomic Battery Base (200mAh)

Description

Atomic Battery Base is a portable power base designed specifically to power Atom series products. It features the ETA9085E10 high-efficiency boost converter solution and the LGS4056HDA linear charging management chip, with a built-in 200mAh rechargeable battery. It provides stable 5V boosted output and ensures safe and efficient battery charging management. The product includes a built-in battery voltage detection circuit with an LED battery level indicator to display the battery's status in real-time. It comes with a Battery Charge and discharge dip switch that supports one-touch switching between boost and charging modes, meeting the needs of portable power applications. It is suitable for IoT devices, portable electronic products, and other applications requiring a stable power supply.

Features

  • ETA9085E10 high-efficiency boost converter chip
  • LGS4056HDA charging chip
  • Built-in 200mAh rechargeable battery
  • Battery voltage ADC detection
  • LED battery level indicator
  • Battery Charge and discharge dip switch

Includes

  • 1 x Atomic Battery Base

Applications

  • Power supply for IoT devices
  • Portable electronic products
  • Mobile testing platform

Specifications

Specification Parameter
Charging/Discharging Chip LGS4056HDA
Boost Converter Chip ETA9085E10
Battery Level Indicator 4-level display (red LED)
Charging Indicator Charging (blue LED), Fully charged (green LED)
Battery Capacity DC 3.7V@200mAh
Battery Circuit Detection Voltage divider detection circuit
Charging Current DC 5V@223mA
Maximum Boost Output Current DC 5V@300mA
Standby Current (Switch OFF) DC 4.2V@2.55uA
Operating Temperature 0~40°C
Operating Current DC 4.2V@39.55mA
Product Size 24.0 x 24.0 x 23.93mm
Product Weight 9.9g
Package Size 47.0 x 46.0 x 27.0mm
Gross Weight 15.8g
Charging Tip When the power switch is turned ON, the battery boosts to 5V to power the Atom. When the power switch is turned OFF, the battery can be charged via the Atom USB interface. The boost and charging states need to be manually switched with the switch and cannot occur simultaneously. 4-level battery display (red LED) for battery status, and charging status is displayed (blue LED: charging, green LED: fully charged).

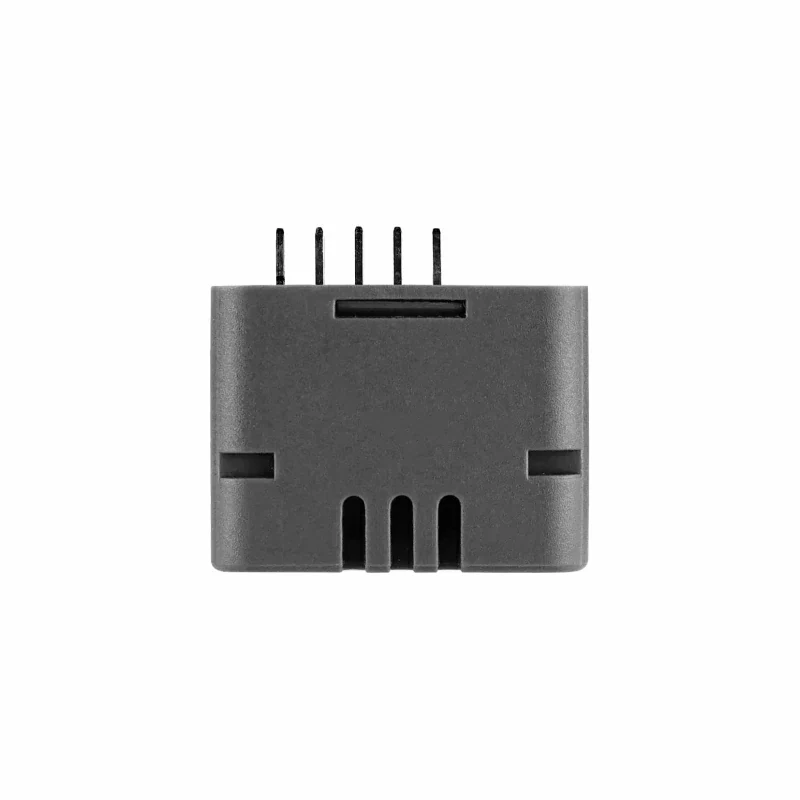

Compatibility  If used with the Atomic Voice Base, all pins on the right side of the Atomic Battery Base (5P) must be cut. If used with Atom Voice, the G33 pin connection must be cut. In these combinations, the Atomic Battery Base is only used for power supply and cannot read the battery voltage status.

Learn and Documents

→ DOCUMENTS
