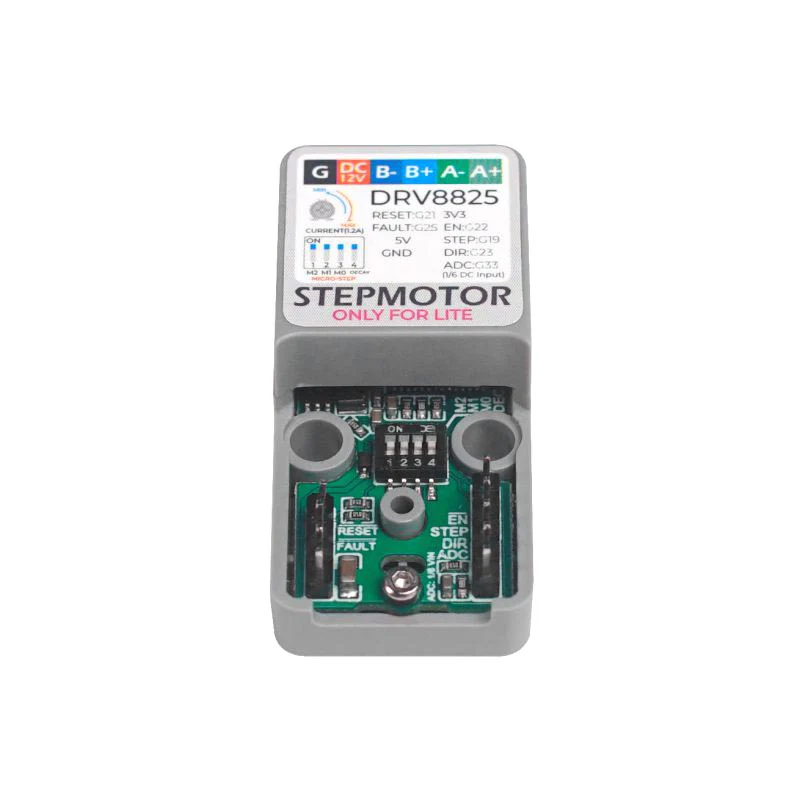

[EOL] ATOM Stepper Motor Driver Development Kit (DRV8825)
Description
Atom Stepmotor is a stepper motor driver module designed for Atom-Lite, featuring a built-in DRV8825 driver chip. It can drive stepper motors and provides up to 1.2A of driving capability by adjusting the variable resistor. The chip includes overcurrent protection. The onboard DIP switch allows flexible adjustment of the step subdivision. The built-in DC-DC chip can power the ATOM via an external power supply. When using the stepper motor, an external power supply (9 ~ 18V) is required.
Features
- Compatible only with Atom-Lite
- Built-in DC/DC conversion circuit, allowing external power to supply the ATOM
- Up to 32 subdivisions
- Maximum 1.2A driving current
- Status indicator light
Includes
- 1 x Atom-Lite
- 1 x Atomic Stepmotor Base
- 1 x Type-C cable (20cm)
- 1 x M2*8 screw
- 1 x Hex key
Applications
- Stepper motor controller
Specifications
| Specification | Parameter |
|---|---|
| Subdivision | Up to 1/32 |
| Output Current | Up to 1.2A |
| Supply Voltage | 9V-18V |
| Interface | KF128L 2.54 6P |
| Housing Material | Plastic (PC) |
| Product Weight | 17g |
| Gross Weight | 53g |
| Product Size | 48 x 24 x 18mm |
| Package Size | 55 x 55 x 20mm |
