Description

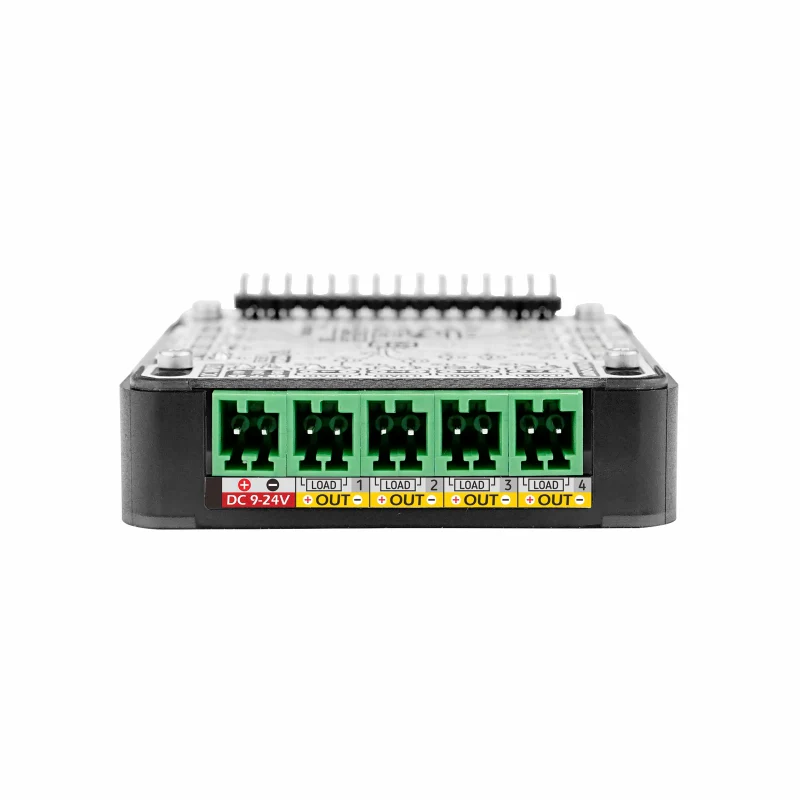

Module13.2 4In8Out is an IO expansion module with 8-channel MOS driven outputs + 4-channel passive contact inputs. It uses an STM32F030 as the I2C IO expansion chip, supports 9 ~ 24V power input, and has a built-in 5V DC-DC conversion circuit.

Features

• Suitable for Basic/Fire/Core2/CoreS3 hosts
• Equipped with STM32F030 as IO expansion chip, communicates with host via I2C, I2C address can be modified by writing to registers
• 8-channel common-positive MOS driving circuit (A3400), can directly drive loads, each channel supports up to 1A, total current not exceeding 8A
• 4-channel common-ground passive contact inputs, cannot be connected to active signals or signals greater than 5V
• Built-in MP1584 9 ~ 24V -> 5V DC-DC circuit

Includes

• 1 x Module13.2 4In8Out
• 13 x 2P Terminal

Applications

• Multi-channel load driving (relay, air valve, unidirectional motor, signal indicator lights, etc.)
• Limit switch, button detection
